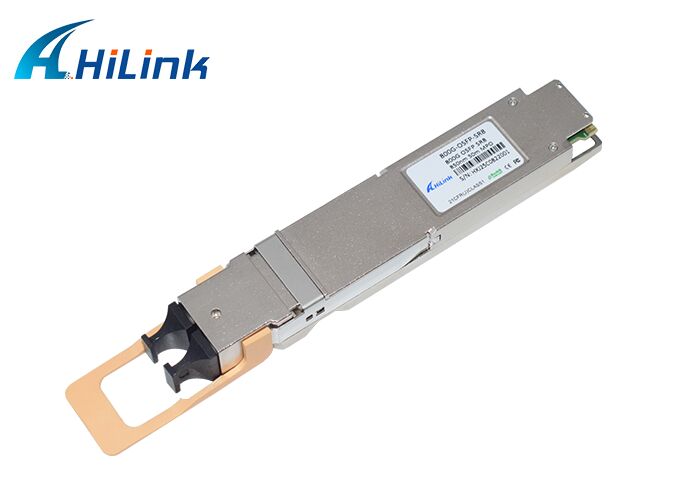

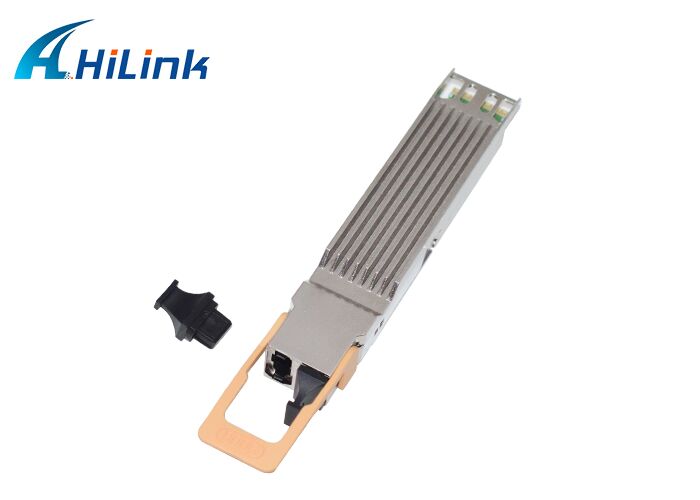

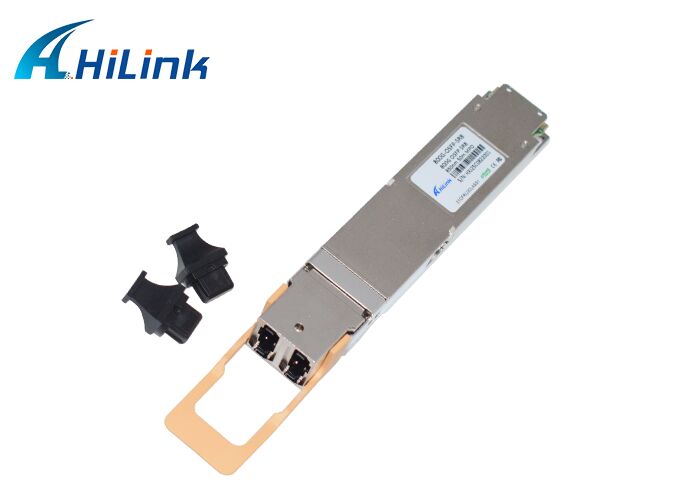

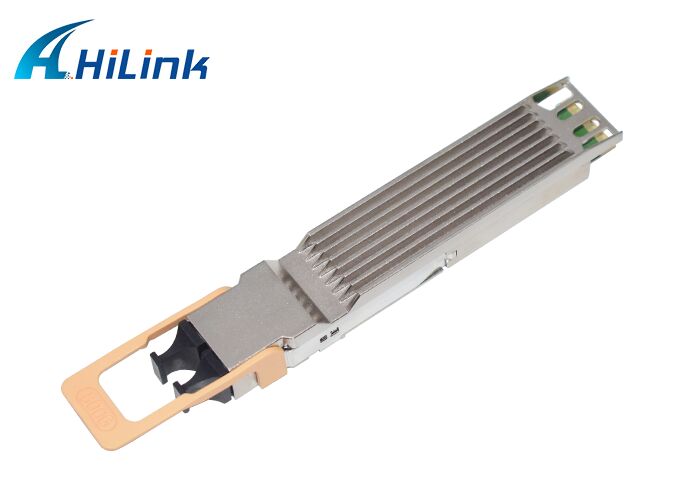

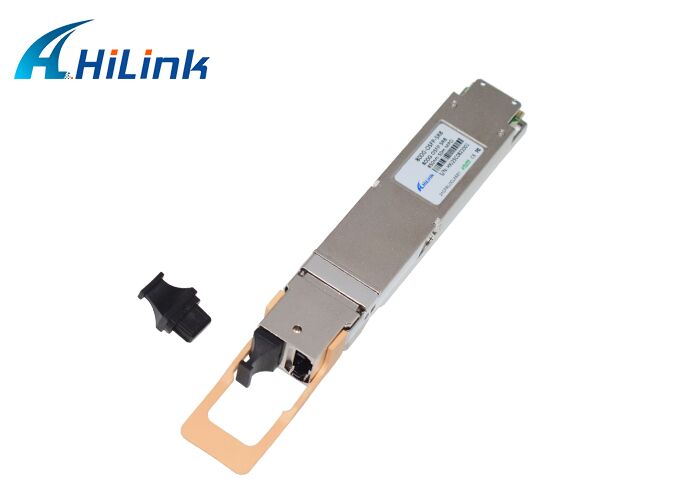

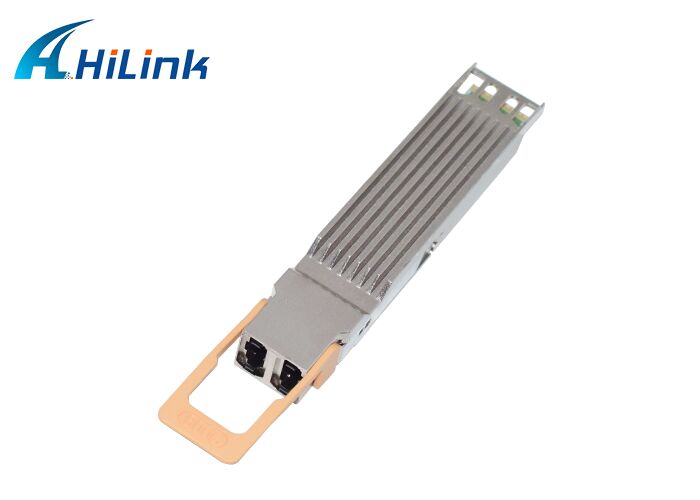

Name: OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-800G-OSFP-SR8
Price: 130.00 USD
Availability: InStock

Thuis > producten > Optische zendontvangermodule >

OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption

Plaats van herkomst:

China

Merknaam:

HiLink or OEM

Certificering:

CE, FCC, ROSH

Modelnummer:

HL-800G-OSFP-SR8

Neem contact met ons op

Vraag een offerte

Productgegevens

Gegevenssnelheid:

Tot 106,25 Gb/s per kanaal

Transmissieafstand:

100m

Stroomverbruik:

15W

Connectortype:

MPO12-APC

Bedrijfstemperatuur:

0 ~ +70 ℃

Voeding:

Eenvoudig +3,3V

Betaling en verzendvoorwaarden

Min. bestelaantal

1 ST

Prijs

Onderhandelbaar

Verpakking Details

Normaal pakket of OEM

Levertijd

5-8 werkdagen

Betalingscondities

T/T,Western Union,Paypal

Levering vermogen

2000pcs per week

Verwante producten

Hilink 200G QSFP56 Compatible Active Optical Cable with Customizable Length for High-Speed Data Transmission

Krijg Beste Prijs

Hilink 200G QSFP56 to 2*100G Active Optical Cable with Customizable Length and 3 Years Warranty

Krijg Beste Prijs

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optische Transceiver met 10 km afstand en Hot Pluggable Ontwerp

Krijg Beste Prijs

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver Met Diagnostische Monitoring

Krijg Beste Prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

OSFP800 800G 2xSR4 Optical Transceiver

Product Overview

This 800Gb/s OSFP800 2xSR4 optical module is designed for 100m optical communication applications. The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s. On the receiver side, it converts 8 channels of parallel optical signals back into electrical output data. An optical fiber cable with dual MPO12-APC connectors plugs directly into the module receptacle. Host FEC is required to support up to 100m fiber transmission.

Key Features

Up to 106.25 Gb/s data rate per channel using PAM4 modulation
Support for 800GAUI-8 electrical interface
Integrated 850nm VCSEL array and PD array
Digital Diagnostic Monitoring (DDM) function implemented
Hot-pluggable design
Single +3.3V power supply

Technical Standards

Compliant with OSFP MSA 5.0
Compliant with CMIS 4.0
8x106.25Gb/s electrical interface (800GAUI-8)
Maximum power consumption: 15W
Single +3.3V power supply
Case temperature range: 0°C to +70°C
RoHS 2.0 compliant

Applications

Data centers and Cloud Networks
