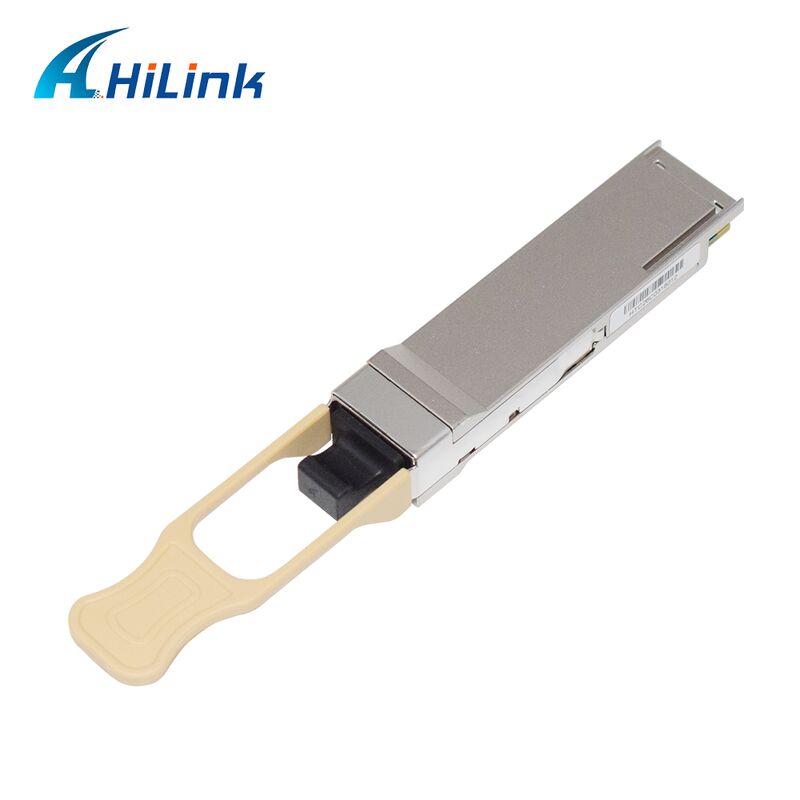

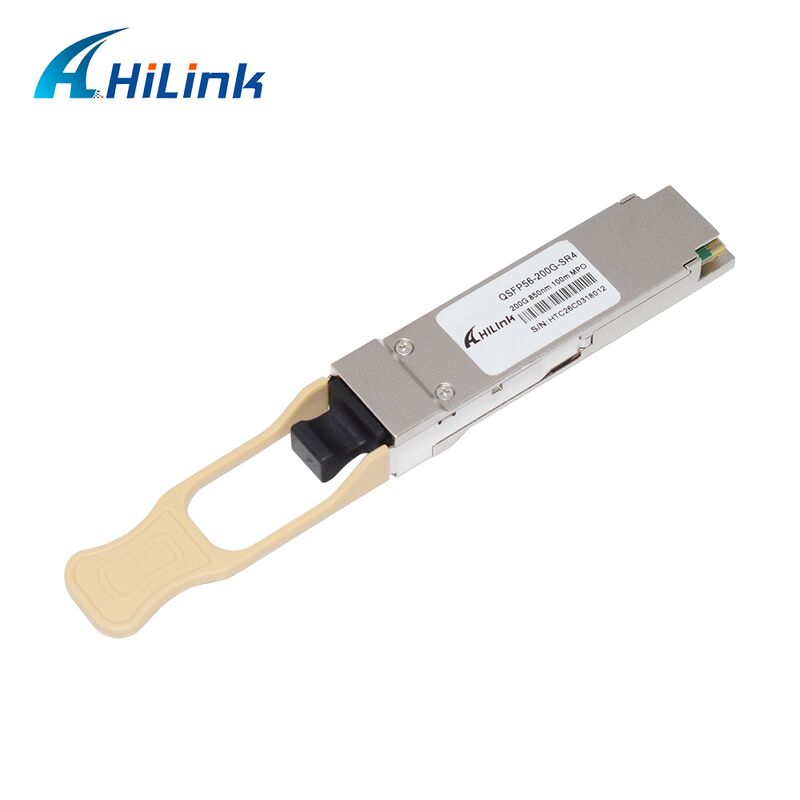

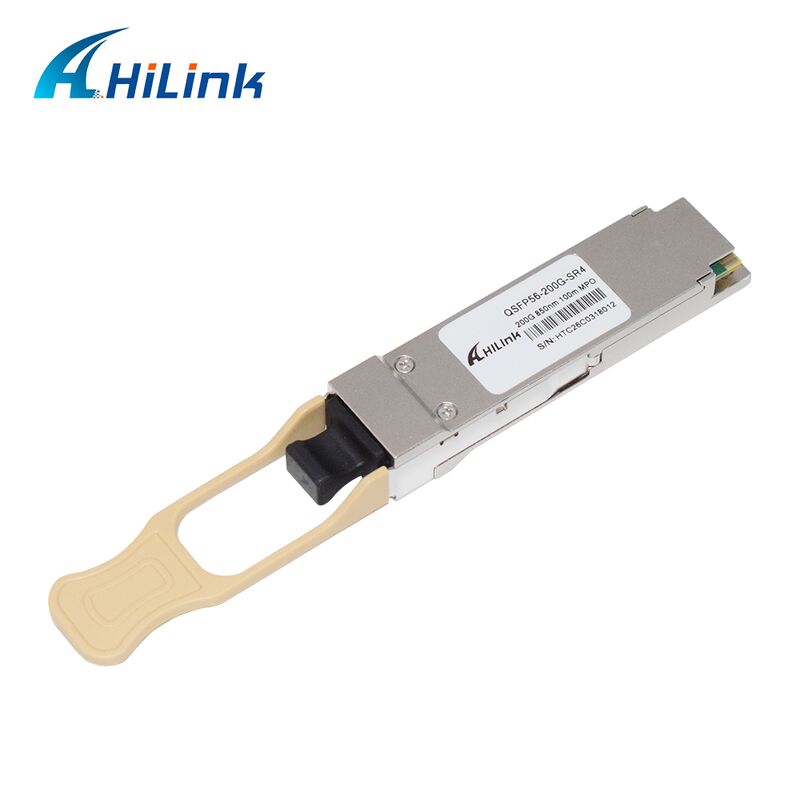

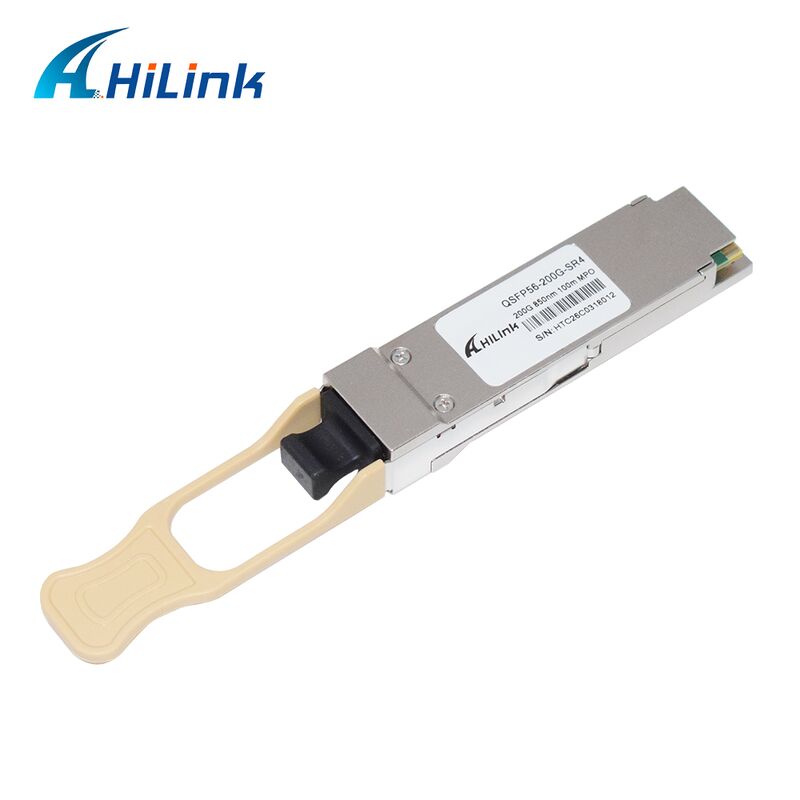

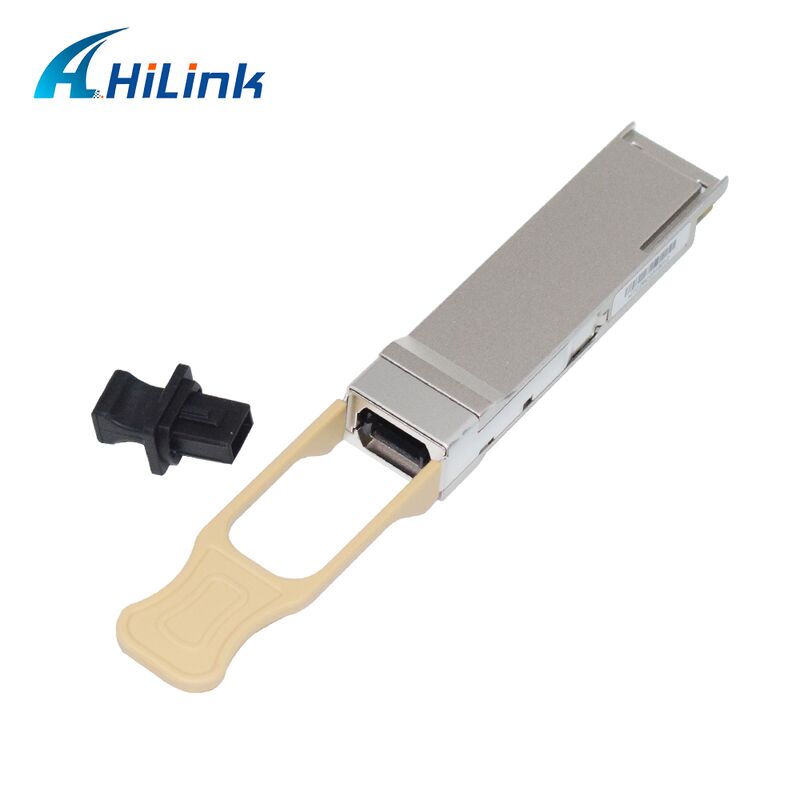

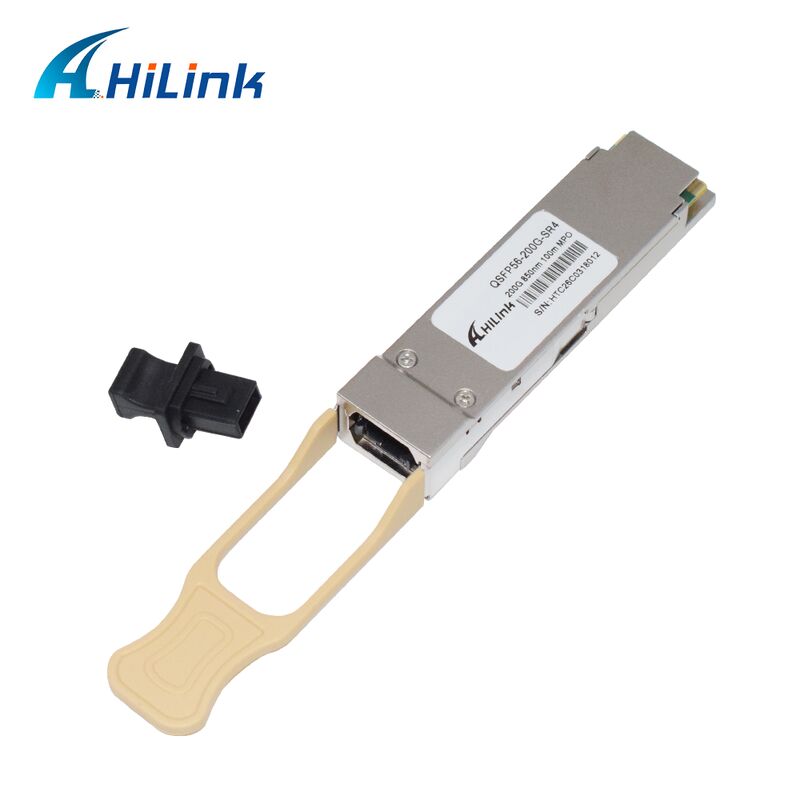

Name: Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP56-200G-SR4
Price: 66.00 USD
Availability: InStock

Thuis > producten > Optische zendontvangermodule >

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Plaats van herkomst:

Guangdong, China

Merknaam:

Hilink

Certificering:

CE RoHs

Modelnummer:

HL-QSFP56-200G-SR4

Neem contact met ons op

Vraag een offerte

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Productgegevens

Productnaam:

QSFP56-200G-SR4

Gegevenssnelheid:

200g

Afstand:

100m

Garantie:

3 jaar

Certificering:

RoHS compliant

OEM/ODM -bestelling:

Steun

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Prijs

54~78USD/UNIT

Verpakking Details

Normaal pakket of OEM

Levertijd

5-8 werkdagen

Betalingscondities

L/C, T/T, Western Union

Verwante producten

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Krijg Beste Prijs

Hilink QDD-400G-SR8 Multi-mode 850nm 400G BASE-SR8 QSFP-DD Transceiver, With Diagnostic Monitoring

Krijg Beste Prijs

video

QDD-400G-SR8 400G MMF 850nm QSFP-DD PAM4 100m DOM MTP/MPO-16 Optische Transceiver

Krijg Beste Prijs

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

Krijg Beste Prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Feel free to contact us for details, compatibility, customization and wholesale pricing.

The QSFP56-200G-SR4 is a 4-Channel, Pluggable, Fiber-Optic QSFP56 for 200Gbps SR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 53.125Gbps per lane up to 70m using OM3 fiber and 100m using OM4 fiber. The optical interface uses MPO receptacles.

This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector.

Key Features

Hot-pluggable QSFP56 form factor
Data Rate up to 53.125 Gb/s PAM4 per lane
4x53Gbps PAM4 transmitter and PAM4 receiver
4 channels 850nm VCSEL laser array and 4 channels PIN photo-detector array
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
Digital diagnostics functions are available via the I2C interface
Single 3.3V Power Supply and Power Dissipation: QSFP56-200G-SR4C < 5.5W / QSFP56-200G-SR4B < 6W
MPO-12 connector
Operating Case Temperature: 0℃~+70℃
RoHS compliant

Applications

200G BASE-SR4 Ethernet

Ordering Information
