Name: 200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP200G-LR8
Price: 130.00 USD
Availability: InStock

Thuis > producten > Optische zendontvangermodule >

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector

Plaats van herkomst:

China

Merknaam:

HiLink or OEM

Certificering:

CE FCC ROSH

Modelnummer:

HL-QSFP200G-LR8

Neem contact met ons op

Vraag een offerte

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector

Productgegevens

Productnaam:

200G QSFP DD PSM8 10 km optische zendontvanger (MPO16)

Overdragen:

10 km

Gegevenssnelheid:

200g

Connector:

MPO16

Golflengten:

1310 nm

OEM:

Steun

Betaling en verzendvoorwaarden

Min. bestelaantal

1 ST

Prijs

Onderhandelbaar

Verpakking Details

Normale verpakking of OEM

Levertijd

5-8 werkdagen

Betalingscondities

T/T,Western Union,Paypal

Levering vermogen

2000pcs per week

Verwante producten

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Krijg Beste Prijs

10Gb/s XFP Bi-directionele Transceiver 40km Bereik TX1270/1330nm RX1330/1270nm RoHS Compliant

Krijg Beste Prijs

Hilink 10G Data Rate SFP+ Transceiver met 30M/80M afstand en RoHS-compliant 10GBASE-T kopermodule

Krijg Beste Prijs

Hilink HL-SFP-T 1000BASE-T en 10/100/1000BASE-T koper SFP-transceiver met RJ-45 connector

Krijg Beste Prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

Description

The Technologies HL-QSFP200G-LR8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 16 fiber MTP (MPO) connector. This module incorporates Hilink Technologies proven circuit and Optical technology to provide reliable long life, high performance, and consistent service. The 200G QSFP DD PSM8 is one kind of parallel transceiver. DFB and PIN array package is key technique, through I2C system can contact with module.

Features

8 channels full-duplex transceiver modules
Supports 8×25Gb/s aggregate bit rates
Supports 8×10Gb/s aggregate bit rates if requires
8 channels 1310nm DFB
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <6.5W
Hot Pluggable QSFP DD form factor
Up to 10km reach for G.652 SMF
Single male MPO16(APC 8-degree) connector receptacle
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications

2×100G Ethernet links
Infiniband DDR/EDR
Datacenter and Enterprise networking

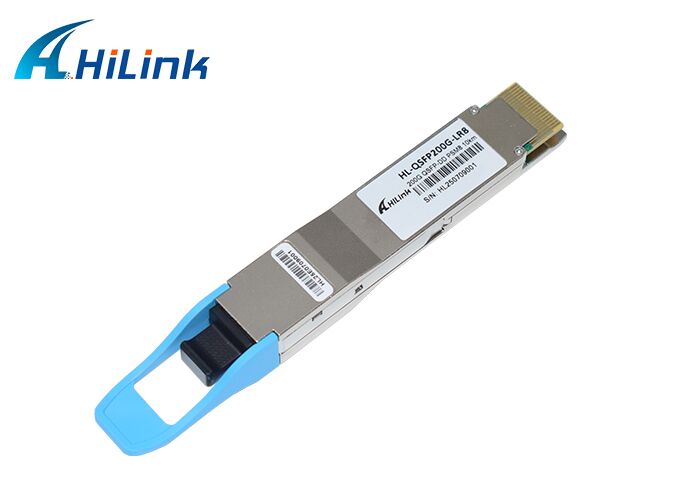

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 0

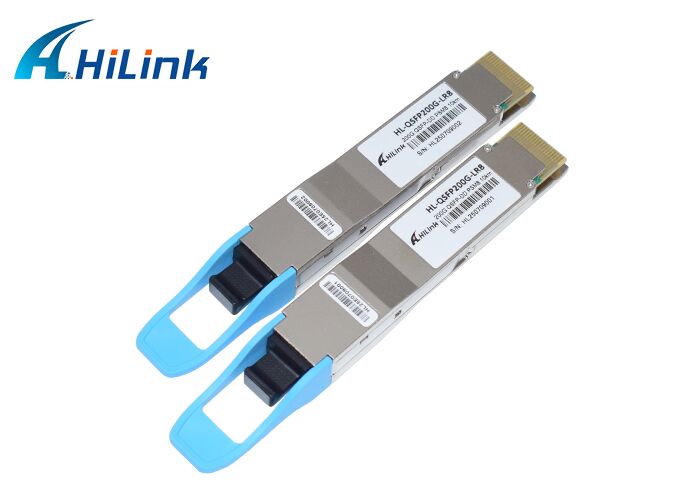

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 1

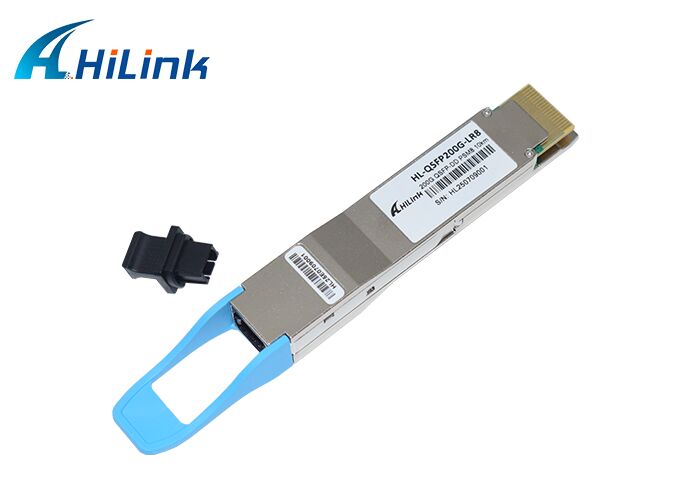

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 2
