Name: SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP-BXU-L5/HL-SFP-BXD-L5
Price: 5.00 USD
Availability: InStock

Thuis > producten > Optische zendontvangermodule >

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Plaats van herkomst:

Merknaam:

HiLink or OEM

Certificering:

CE FCC ROSH

Modelnummer:

HL-SFP-BXU-L5/HL-SFP-BXD-L5

Neem contact met ons op

Vraag een offerte

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Productgegevens

Productnaam:

SFP+ 10G BIDI 5KM optische transceiver

Gegevenssnelheid:

10g

Overdragen:

5 km

Connectortype:

Golflengte:

T1270/R1330

Verenigbaar:

Cisco, Juniper, Arista, Huawei, enz

Betaling en verzendvoorwaarden

Min. bestelaantal

1 paar

Prijs

US$5.00~US$6.00/pair

Verpakking Details

Normaal pakket of OEM

Levertijd

5-8 werkdagen

Betalingscondities

T/T, Paypal, Western Union

Levering vermogen

2000 paren per week

Verwante producten

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Krijg Beste Prijs

10Gb/s XFP Bi-directionele Transceiver 40km Bereik TX1270/1330nm RX1330/1270nm RoHS Compliant

Krijg Beste Prijs

Hilink 10G Data Rate SFP+ Transceiver met 30M/80M afstand en RoHS-compliant 10GBASE-T kopermodule

Krijg Beste Prijs

Hilink HL-SFP-T 1000BASE-T en 10/100/1000BASE-T koper SFP-transceiver met RJ-45 connector

Krijg Beste Prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

Description

The HL-SFP-BXU-L5/HL-SFP-BXD-L5 Transceiver is intended for 5km reach service from 0.6Gb/s to 10.3125Gb/s BI-direction single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.

The low jitter and low bit error rate optical assembly features a DML laser transmitter and PIN/TIA receiver. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Product features

l Operating data rate up to 10.3125Gbps

l Up to 5km transmission distance

l High sensitivity PIN photodiode and TIA

l 12dB Power Budget at Least

l LC single connector

l Hot pluggable 20pin connector

l Low power consumption <1.2 W

l Single +3.3V±5% power supply

l Compliant with SFF-8472&SFF-8431

l Fully RoHS Compliant

l Compliant with IEEE802.3ae 10GBASE-LR/LW

l Operating temperature range:

Commercial: 0°C to +70°C

Industrial: -40°C to +85°C

Application

l 10GBASE-LR at 10.31Gbps

l 10GBASE-LW at 9.95Gbps

l Other Optical Links

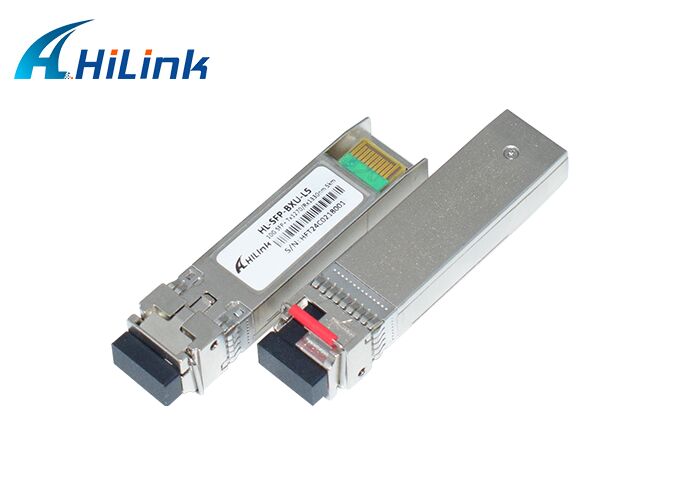

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission 0

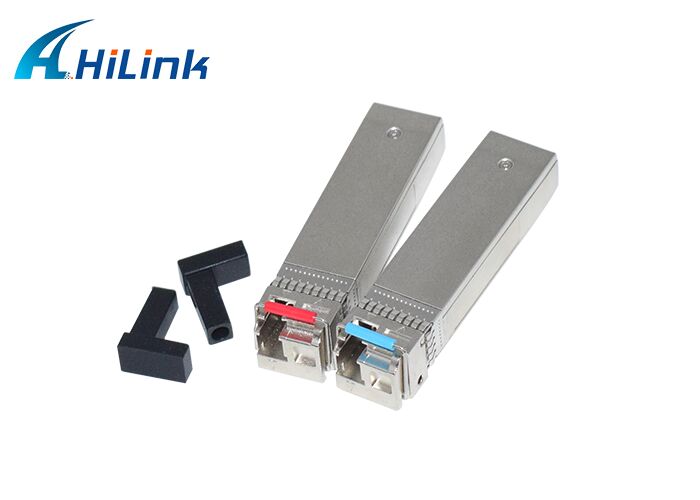

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission 1

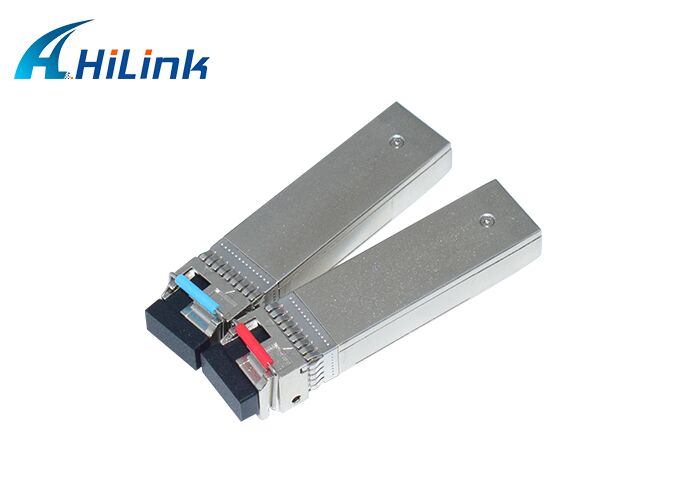

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission 2
