Name: 400G OSFP LR4 10km Duplex LC Transmission on Single Mode Fiber (SMF) OSFP Module
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-400G - OSFP-LR
Price: 900.00 USD
Availability: InStock

Thuis > producten > QSFP+ zendontvanger >

400G OSFP LR4 10km Duplex LC Transmission on Single Mode Fiber (SMF) OSFP Module

400G OSFP LR4 transceiver

OSFP module single mode fiber

10km duplex LC OSFP

Plaats van herkomst:

Guangdong, China

Merknaam:

HILINK

Certificering:

CE FCC Rohs

Modelnummer:

HL-400G - OSFP-LR

Neem contact met ons op

Vraag een offerte

Productgegevens

Productnaam:

400G - OSFP-LR

Sollicitatie:

400GBase

Golflengte:

1310 nm

Afstand:

10 km

Connector:

DDM/DOM:

Vezeltype:

SMF

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Prijs

Onderhandelbaar

Verpakking Details

Statische tas, plastic zak, winkelbox

Levertijd

2-7 werkdagen

Betalingscondities

T/T, Western Union, Paypal

Levering vermogen

10 stks/week

Verwante producten

video

400G Base SMF LR4 OSFP Module Duplex LC Transmission on 10km for 5G Data Center

Krijg Beste Prijs

video

QSFP+ zendontvangervcsel OM4 MMF QSFP+ Zendontvanger 850nm 100m Duplexfcc van LC 100G

Krijg Beste Prijs

video

de Vezel Optische Zendontvanger MMF 150m van 100G QSFP28 SWDM4 Duplexlc voor Data Center

Krijg Beste Prijs

video

Duplex Optische de Zendontvangermodule 100GBASE-LR1 QSFP28 Enige Lambda 1310nm 10km DOM van LC SMF

Krijg Beste Prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

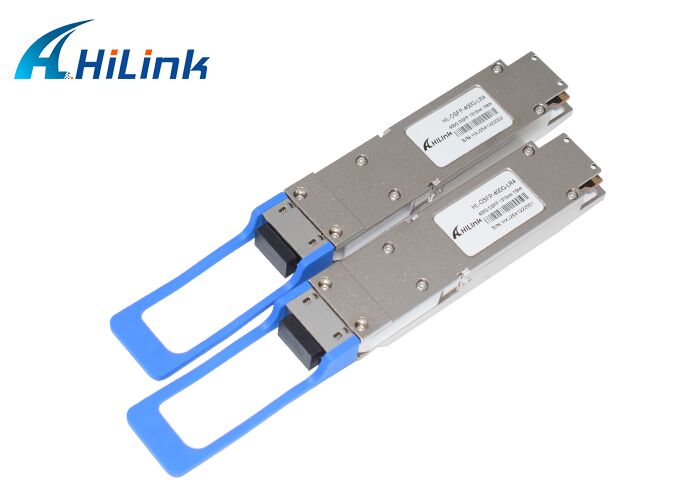

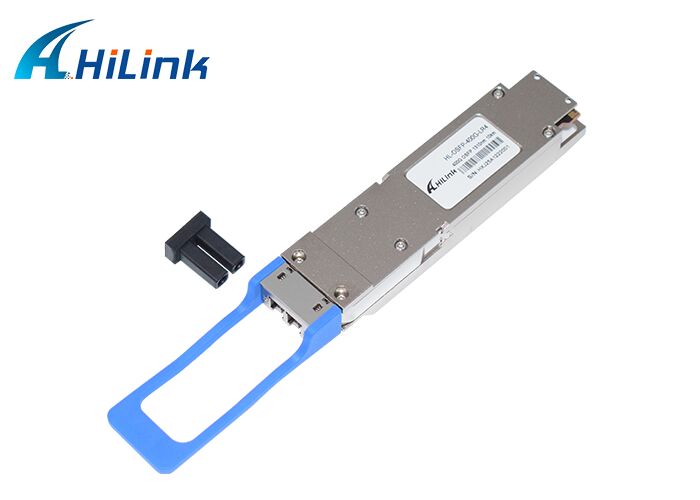

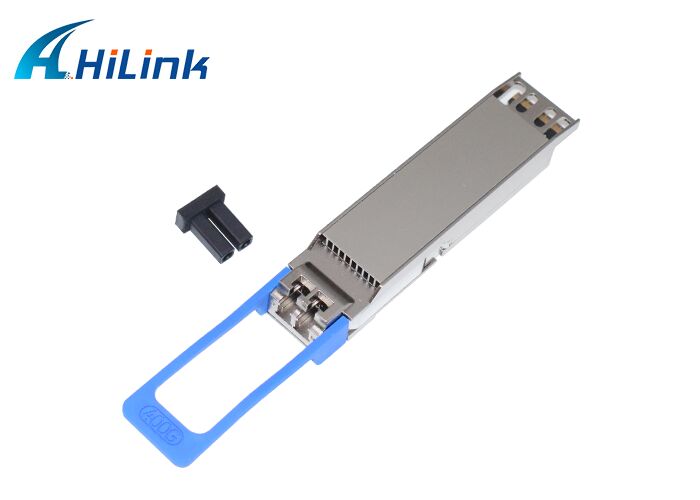

400G OSFP LR4 10km Duplex LC Transmission on Single Mode Fiber (SMF) OSFP Module

Product Overview

400G Base SMF LR4 OSFP Module Duplex LC Transmission on 10km for 5G Data Center

Kindly Remind: Tell us your needed compatibility!

OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels operating up to 53.125Gbps per channel. The integrated GearBox in module converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gb/s.

The four transmitter/receiver units operate on the ITU G.694.2 CWDM grid near 1300nm. The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with a 4-channels modulator driver, 4 externally modulated lasers and one optical multiplexer. On the receiver path, an optical de-multiplexer is coupled to 4 photodiodes, along with the PAM4 re-timer that built-in 4-channel TIA array. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with OSFP MSA.

Key Features

Supports 425Gbps
Single 3.3V Power Supply
Up to 10km over SMF with KP4 FEC supported at the Host side
Duplex LC connector
8x53.125Gbps (PAM4) electrical interface PIN and TIA array on the receiver side
Power dissipation < 8W

QSFP Series Comparison

QSFP	Nominal Wavelength (nm)	Cable Type	Core Size (Microns)	Modal Bandwidth (MHzkm)3	Cable Distance*1	Power Consumption (W)	Pull Tab Color
QSFP-100G-SR4-S	850	MMF	50.0 50.0	2000 (OM3) 4700 (OM4)	70m 100m	3.5	Beige
QSFP-100G-LR4-S	1295, 1300, 1304, 1309	SMF	G.652	-	10km	3.5	Blue
QSFP-100G-CWDM4-S	1271, 1291, 1311, 1331	SMF	G.652	-	2km	3.5	Green
QSFP-100G-PSM4-S	1310	SMF	G.652	-	500m	3.5	Orange
QSFP-100G-SM-SR	1271, 1291, 1311, 1331	SMF	G.652	-	2km	3.5	Green

Product Image
