Name: OSFP 400G LR4 1310nm 10km Transceiver Module
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: OSFP-400G-LR4
Price: 130.00 USD
Availability: InStock

Thuis > producten > Optische zendontvangermodule >

OSFP 400G LR4 1310nm 10km Transceiver Module

OSFP 400G LR4 transceiver module

1310nm 10km optical transceiver

400G LR4 fiber optic module

Plaats van herkomst:

Guangdong, China

Merknaam:

Hilink

Certificering:

CE Rohs

Modelnummer:

OSFP-400G-LR4

Neem contact met ons op

Vraag een offerte

OSFP 400G LR4 1310nm 10km Transceiver Module

Productgegevens

Productnaam:

OSFP-400G-LR4

Gegevenssnelheid:

400G

Bereik:

10 km

gebruik:

Datacentrum

Vezelconnector:

Duplex LC

Bedrijfstemperatuur:

0 tot 70 ℃

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stuks

Prijs

Send Inquiry know latest price

Verpakking Details

Plastic doos+doos

Levertijd

5-8 werkdag

Betalingscondities

T/T, Western Union, Alipay, PayPal/WeChat/Trade Assurance

Levering vermogen

2000 stukken/week

Verwante producten

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission

Krijg Beste Prijs

HL-Cir-1310 3-poorten Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box voor Data Center

Krijg Beste Prijs

Hilink 100G QSFP28 Optische Transceiver Module met 100km Afstand 100G Datasnelheid en ZR4+ Conformiteit

Krijg Beste Prijs

HL-QSFP28-100G-FR1 100Gbps QSFP28 FR Single Lambda Transceiver met 2 km bereik optische transceiver module

Krijg Beste Prijs

Neem contact met ons op

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Contact opnemen

Productbeschrijving

OSFP 400G LR4 1310nm 10km Transceiver Module

Hilink's OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels operating up to 53.125Gbps per channel. The integrated GearBox in module converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gb/s. The four transmitter/receiver units operate on the ITU G.694.2 CWDM grid near 1300nm. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with OSFP MSA.

Key Features

Supports 425Gbps
Single 3.3V Power Supply
Up to 10km over SMF with KP4 FEC supported at the Host side
Duplex LC connector
8x53.125Gbps (PAM4) electrical interface
PIN and TIA array on the receiver side
Power dissipation < 8W
Case temperature range: 0°C to 70°C (commercial)
Safety Certification: TUV/UL/FDA*1
RoHS Compliant

Applications

400G Ethernet
400G-LR4 applications
Data center
InfiniBand

Transmitter Specifications

The transmitter path contains an 8x50Gbps 400GAUI-8 electrical input with Equalization (EQ) block, integrated electrical multiplexer, integrated driver, 4 externally modulated lasers, optical multiplexer and diagnostic monitors. The integrated electrical multiplexer and integrated driver converts 8 channels of 50Gbps (PAM4) electrical input data to 4 channels of 100Gbps (PAM4) parallel CWDM optical signals. The transmitter complies with EN 60825 and CDRH Class 1 human eye safety compliance.

Receiver Specifications

The receiver path contains optical de-multiplexer, eight PIN photodiodes, trans-impedance amplifiers (TIA), integrated de-multiplexer and 8x50G 400GAUI-8 compliant electrical output blocks. The PIN-TIA and integrated de-multiplexer converts 4 channels of 100Gbps (PAM4) parallel optical signals to 8 channels of 50Gbps (PAM4) electrical output data.

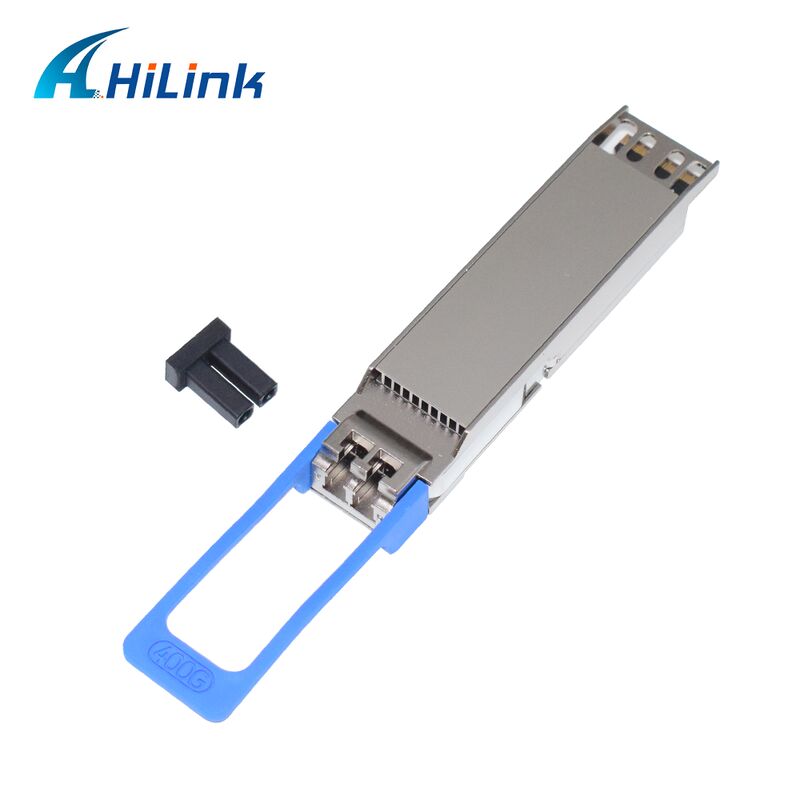

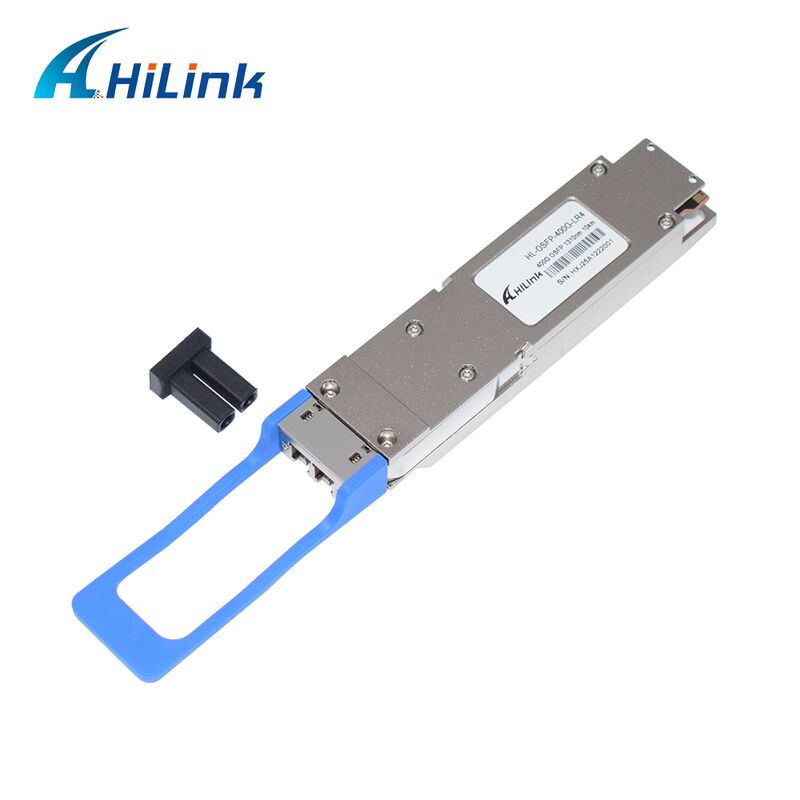

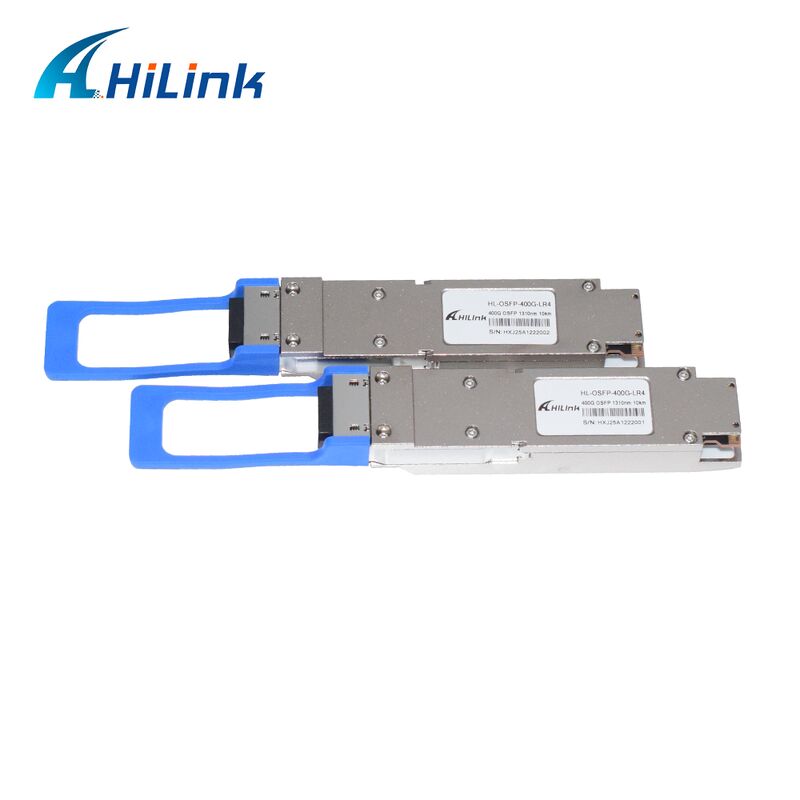

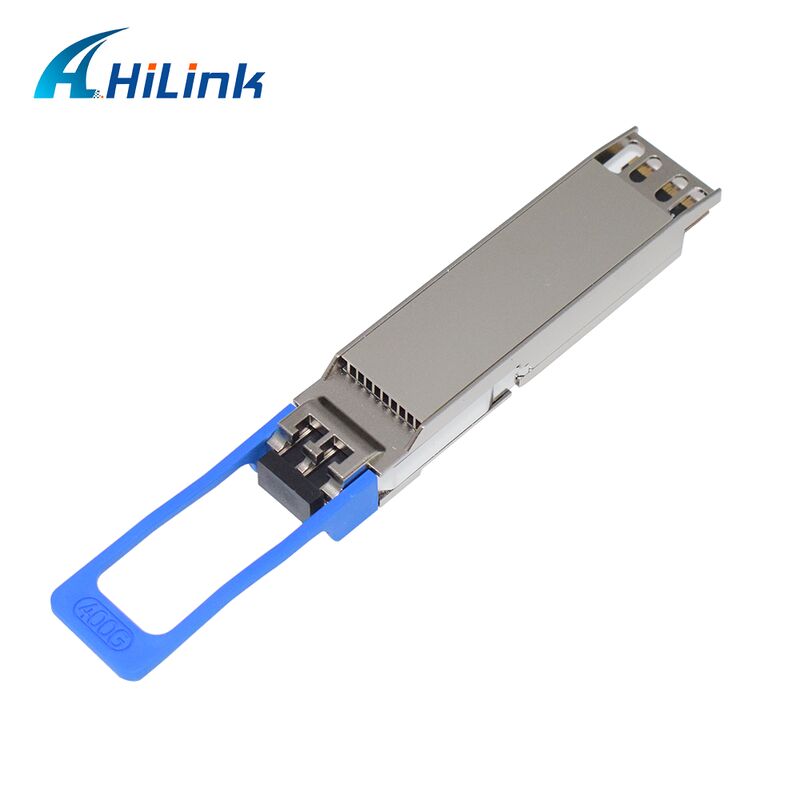

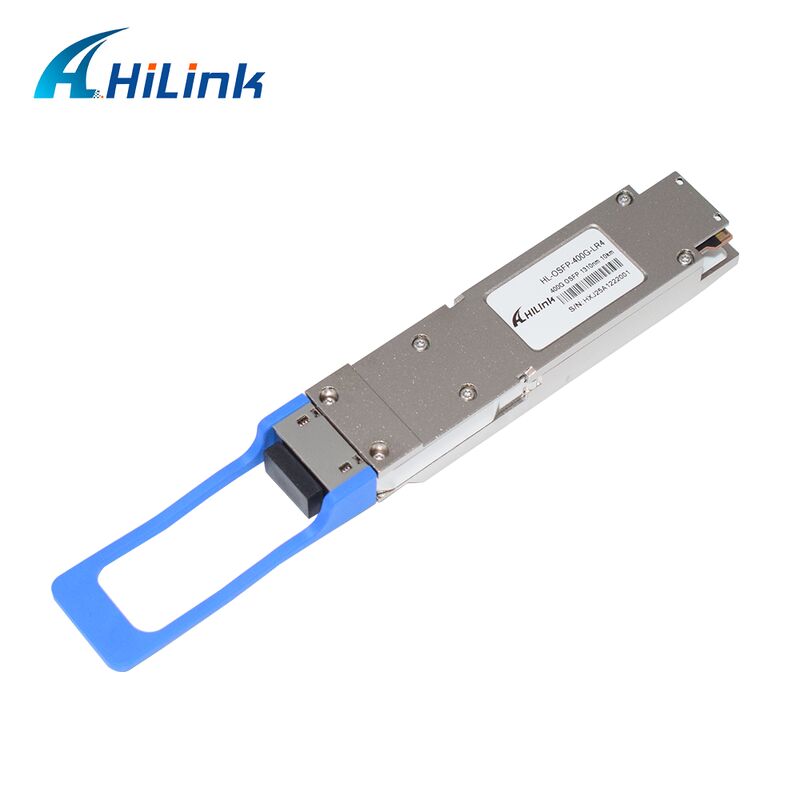

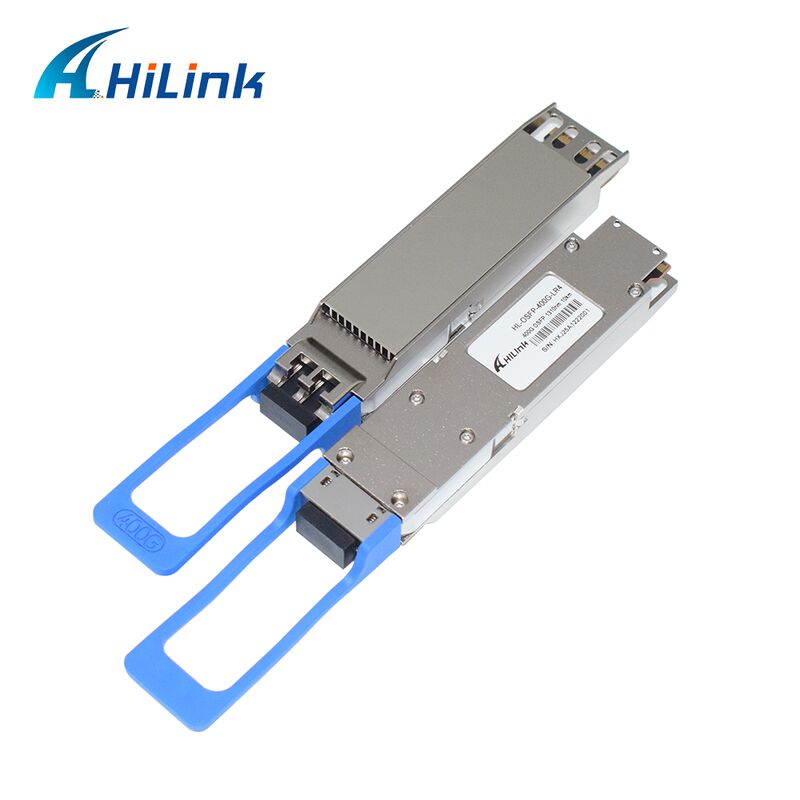

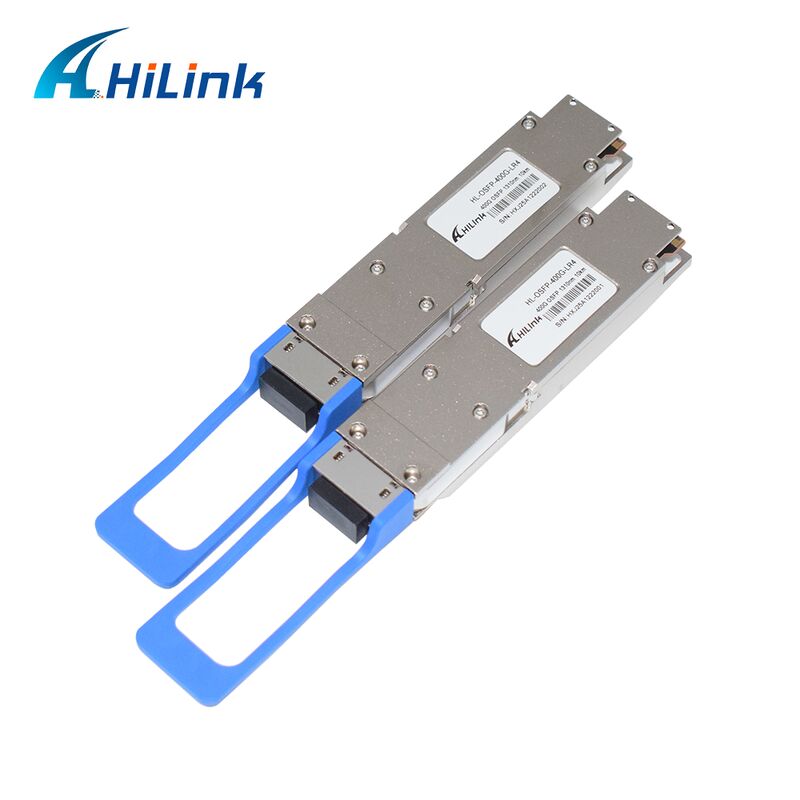

Product Images

Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
