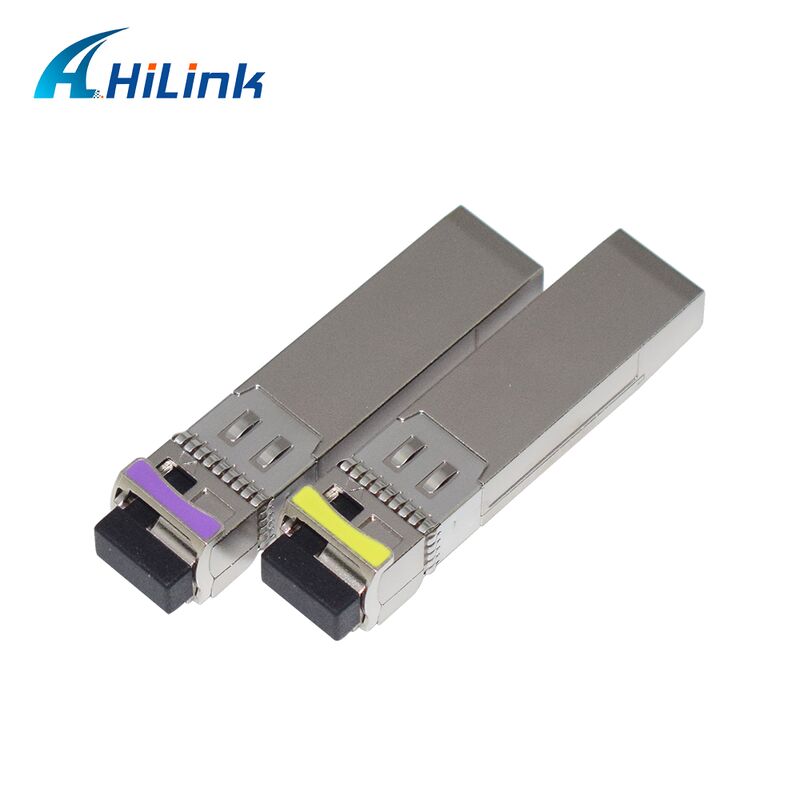

25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication

25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication

25Gb/s SFP28 BIDI Transceiver

60km Fiber Optic Transceiver

1295/1309nm Bi-Directional Transceiver

Place of Origin:

Guangdong, China

Merknaam:

HILINK

Certificering:

CE FCC Rohs

Model Number:

HL-SFP28-25G-U/D60

Neem contact met ons op
Vraag een offerte
25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication 25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication 25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication 25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication 25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication 25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication
Productgegevens
Products name:
25Gb/s 60Km SFP28 BIDI Transceivers
Connetor:
Simplex LC
Data rate:
25G
Distance:
60KM
Wavelength:
1295/1309
Temperature Range:
0℃ ~ +70℃
Certificering:
CE RoHS FCC
Type:
Fiber Optic Transceivers, 25GSFP
Betaling en verzendvoorwaarden
Minimum Order Quantity
1pcs
Prijs
Onderhandelbaar
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Delivery Time
5-8workingdays
Payment Terms
Western Union,T/T,L/C
Supply Ability
100pcs/month
Verwante producten
Goede prijs. 25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication online

25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication

Krijg Beste Prijs
Goede prijs. GPON OLT Transceiver SFP Module with 8dBm 9dBm Output and 2.5G Data Rate online

GPON OLT Transceiver SFP Module with 8dBm 9dBm Output and 2.5G Data Rate

Krijg Beste Prijs
Goede prijs. EPON OLT SFP Transceiver with PX20+ PX20++ PX20+++ for 1.25Gbps Data Rate and 20KM Transmission online

EPON OLT SFP Transceiver with PX20+ PX20++ PX20+++ for 1.25Gbps Data Rate and 20KM Transmission

Krijg Beste Prijs
Goede prijs. 1.25G EPON ONU SFP Transceiver with SC/UPC Receptacle for 20KM Distance and 0℃ ~ +70℃ Temperature Range online

1.25G EPON ONU SFP Transceiver with SC/UPC Receptacle for 20KM Distance and 0℃ ~ +70℃ Temperature Range

Krijg Beste Prijs
Neem contact met ons op
86-755-8317-6243
Contact opnemen
Productbeschrijving
25G SFP28 BIDI 60km Bi-Directional Transceiver 1295/1309nm EML+APD Commercial/Industrial DDM RoHS 6
Features
  • Support data rate up to 25.78125Gb/s
  • Hot-Pluggable SFP Footprint and Single LC Connector
  • Up to 60km reach for G.652 SMF
  • EML TX and Integrated APD RX
  • Temperature Range: Commercial: 0°C ~70°C / Industrial: -40°C ~85°C
  • Power consumption: Commercial: 1.5W / Industrial: 1.8W
  • RoHS 6 compliance
  • Compliant to IEEE 802.3cc, SFF-8472 and SFF-8419
  • Complies with EU Directive 2015/863/EU
Applications
  • 25G Ethernet
  • CPRI option 10
Product Description
The HL-SFP28-25G-U/D60 series single mode transceiver is small form factor pluggable module for duplex optical data communications. The HL-SFP28-25G-U/D60 module is designed for single mode fiber and operates at a nominal wavelength of 1295.56nm or 1309.14nm; the transmitter section uses a multiple quantum well EML, which is class 1 laser compliant according to International Safety Standard IEC-60825.
The SFP28 60km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.

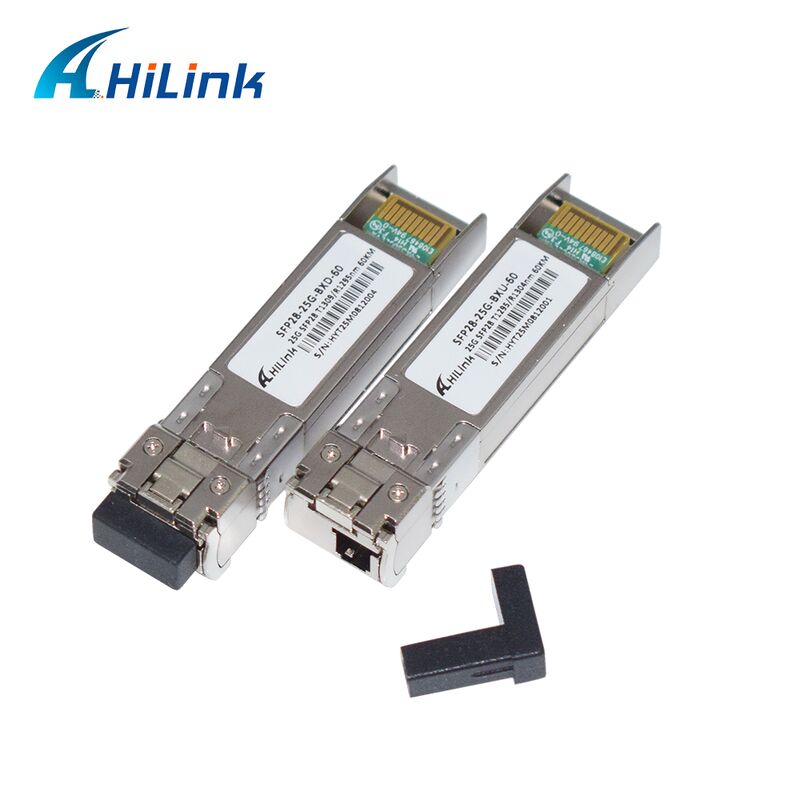

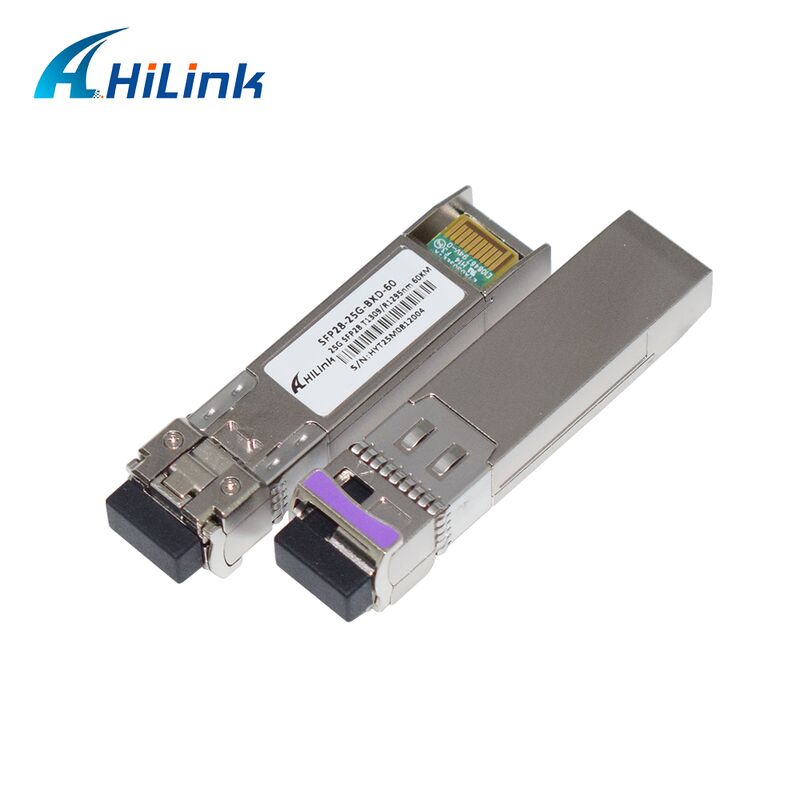

25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication 0 25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication 1
Our Service
OEM and ODM: OEM/ODM order is available.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.
Company Information

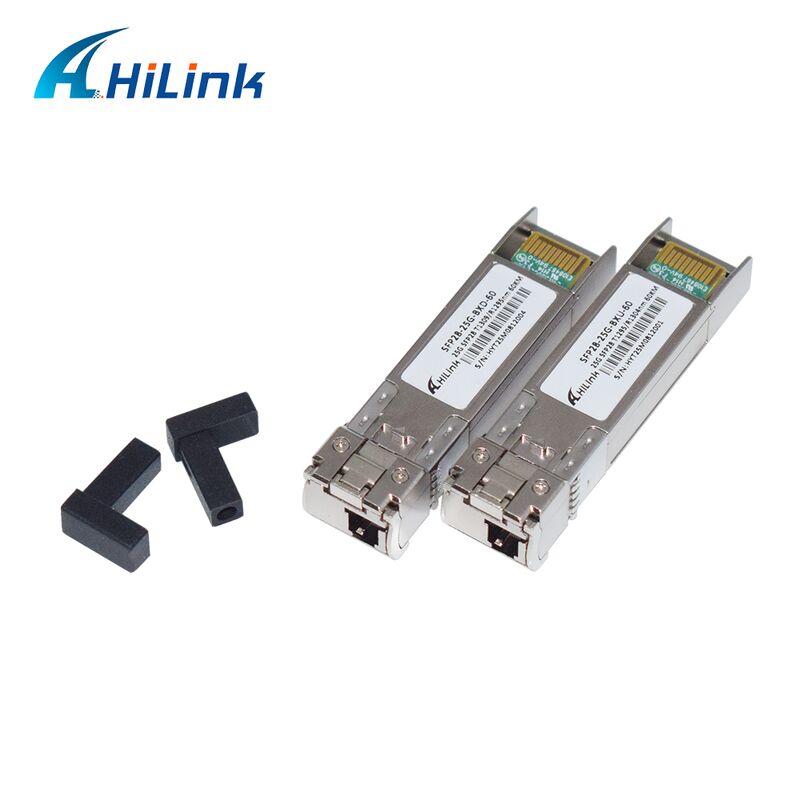

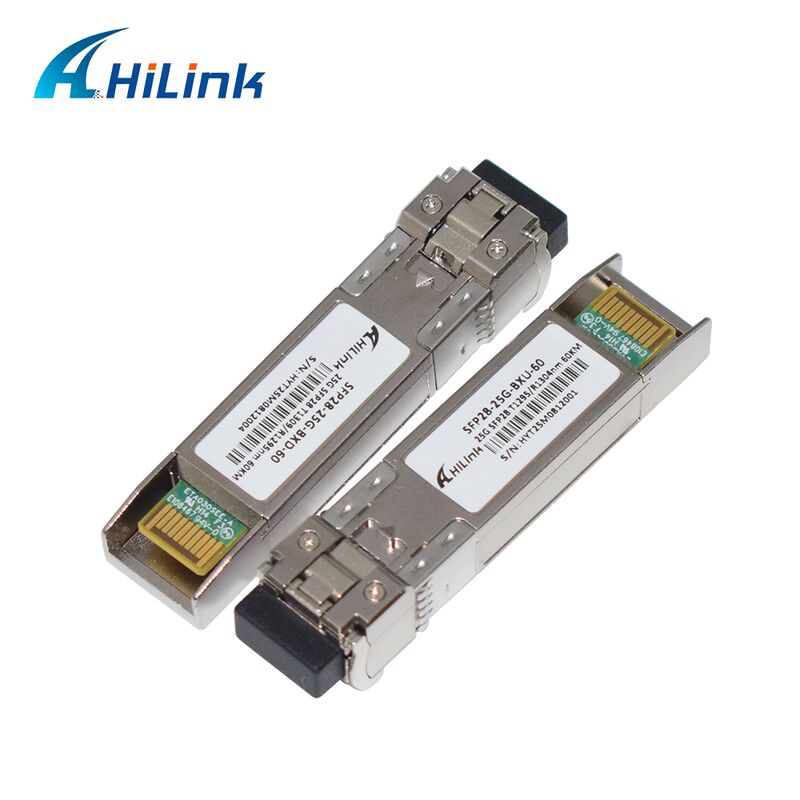

25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication 2 25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication 3
Packaging & Shipping
International Express: DHL, FedEx, EMS, TNT, UPS and so on. It takes 3-7 days.

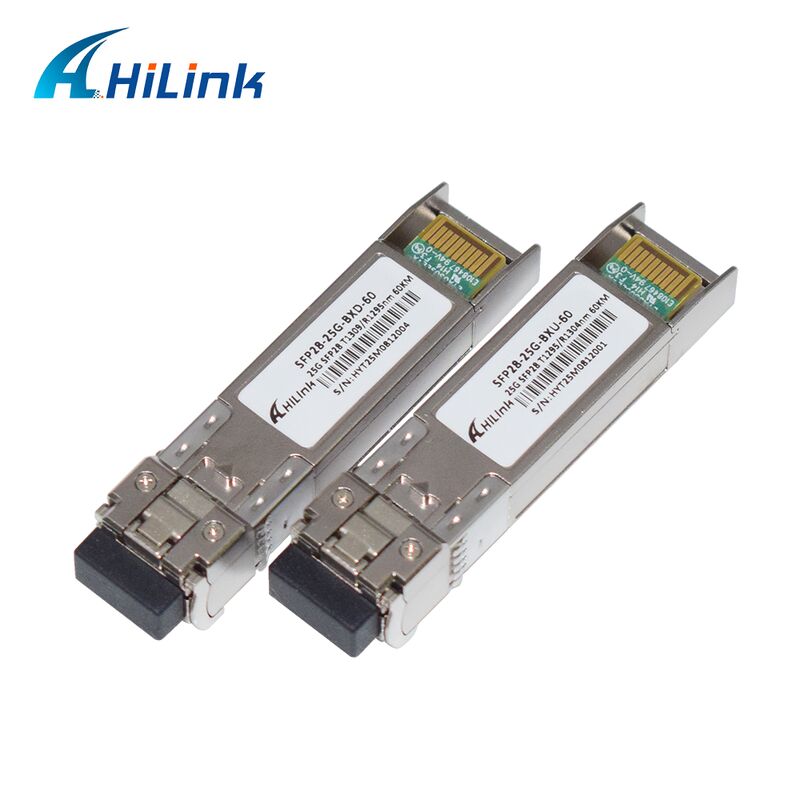

25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication 4
